dataset

URI

  1. <datasets_uri>/{datasetName}[.<format>]

  2. <datasets_uri>/{datasetIndex}[.<format>]

支持的方法

GET、HEAD

父资源

datasets

子资源

datasetBufferResults，datasetOverlayResults，datasetIsolineResults，datasetIsoregionResults、datasetInterpolation、datasetGeorelationResults、datasetLinearReferencing、datasetThiessenPolygonResults、datasetMinDistanceResults、gridMathAnalyst、datasetDensityAnalyst、terrainCalculation、RelativePosition3D、SpatialQuery3D、shadowVolume、planeProjection、section、buffer3D、border、shadowratio

介绍

数据集资源，返回某一数据集的详细信息。可以使用 datasetName 或者 datasetIndex 来访问。

支持的方法：

支持的表述格式：rjson、json、jsonp、html、xml。

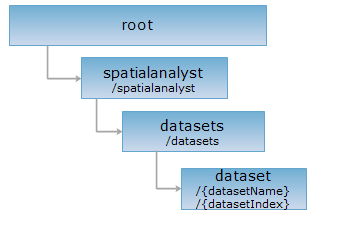

资源层次

HTTP 请求方法

对如下 URI 执行 HTTP 请求，以 rjson 输出格式为例加以说明，其中，supermapiserver 是服务器名。

http://supermapiserver:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation.rjson

GET 请求

获取数据集信息，以及其子资源，即支持的空间分析操作（不同类型的数据集支持不同的空间分析功能）。

响应结构

返回的是 DatasetInfo 类型的表述。

字段 类型 说明
datasetInfo DatasetInfo 数据集信息。
childResourceInfos List<ChildResourceInfo> 子资源信息，即针对此数据集可进行的空间分析操作的列表。

响应示例

对 dataset 资源：http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation.rjson，执行 GET 请求，返回 RJSON 格式的响应如下：

{

    "childResourceInfos": [{

        "name": "datasetBufferResults",

        "path": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/buffer",

        "resourceConfigID": null,

        "resourceType": null,

        "supportedMediaTypes": null,

        "visible": true

    },

    {

        "name": "datasetGeorelationResults",

        "path": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/georelation",

        "resourceConfigID": null,

        "resourceType": null,

        "supportedMediaTypes": null,

        "visible": true

    },

    {

        "name": "datasetInterpolation",

        "path": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/interpolation",

        "resourceConfigID": null,

        "resourceType": null,

        "supportedMediaTypes": null,

        "visible": true

    },

    {

        "name": "datasetIsolineResults",

        "path": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/isoline",

        "resourceConfigID": null,

        "resourceType": null,

        "supportedMediaTypes": null,

        "visible": true

    },

    {

        "name": "datasetIsoregionResults",

        "path": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/isoregion",

        "resourceConfigID": null,

        "resourceType": null,

        "supportedMediaTypes": null,

        "visible": true

    },

    {

        "name": "datasetOverlayResults",

        "path": "http://localhost:8090/iserver/services/spatialanalyst-sample/restjsr/spatialanalyst/datasets/SamplesP@Interpolation/overlay",

        "resourceConfigID": null,

        "resourceType": null,

        "supportedMediaTypes": null,

        "visible": true

    }],

    "datasetInfo": {

        "bounds": {

            "bottom": 1884474.0662141703,

            "left": -2419318.165185321,

            "leftBottom": {

                "x": -2419318.165185321,

                "y": 1884474.0662141703

            },

            "right": 2137211.956299985,

            "rightTop": {

                "x": 2137211.956299985,

                "y": 5846399.0117541645

            },

            "top": 5846399.0117541645

        },

        "charset": "GB18030",

        "dataSourceName": "Interpolation",

        "description": "",

        "encodeType": "NONE",

        "isFileCache": false,

        "isReadOnly": false,

        "name": "SamplesP",

        "prjCoordSys": {

            "coordSystem": {

                "datum": {

                    "name": "D_China_2000",

                    "spheroid": {

                        "axis": 6378137,

                        "flatten": 0.003352810681182319,

                        "name": "China_2000",

                        "type": "SPHEROID_CHINA_2000"

                    },

                    "type": "DATUM_CHINA_2000"

                },

                "name": "GCS_China_2000",

                "primeMeridian": {

                    "longitudeValue": 0,

                    "name": "Greenwich",

                    "type": "PRIMEMERIDIAN_GREENWICH"

                },

                "spatialRefType": "SPATIALREF_EARTH_LONGITUDE_LATITUDE",

                "type": "GCS_CHINA_2000",

                "unit": "DEGREE"

            },

            "coordUnit": "METER",

            "distanceUnit": "METER",

            "epsgCode": -1000,

            "name": "User Define",

            "projection": {

                "name": "Albers",

                "type": "PRJ_ALBERS"

            },

            "projectionParam": {

                "azimuth": 0,

                "centralMeridian": 105,

                "centralParallel": 0,

                "falseEasting": 0,

                "falseNorthing": 0,

                "firstPointLongitude": 0,

                "firstStandardParallel": 25,

                "scaleFactor": 1,

                "secondPointLongitude": 0,

                "secondStandardParallel": 47

            },

            "type": "PCS_USER_DEFINED"

        },

        "recordCount": 400,

        "tableName": "SamplesP",

        "type": "POINT"

    },

    "name": null,

    "path": null

}

HEAD 请求

返回跟 GET 请求一样的 HTTP 响应头，但是没有响应实体。可以在不必传输整个响应内容的情况下，获取包含在响应消息头中的元数据信息。元数据信息包括媒体类型，字符编码，压缩编码，实体内容长度等。

HEAD 请求可以用来判断 dataset 资源是否存在，或者客户端是否有权限访问 dataset 资源。通过对加.<format>的 URI 执行 HEAD 请求，还可以快速判断 dataset 资源是否支持<format>格式的表述。

请参见
